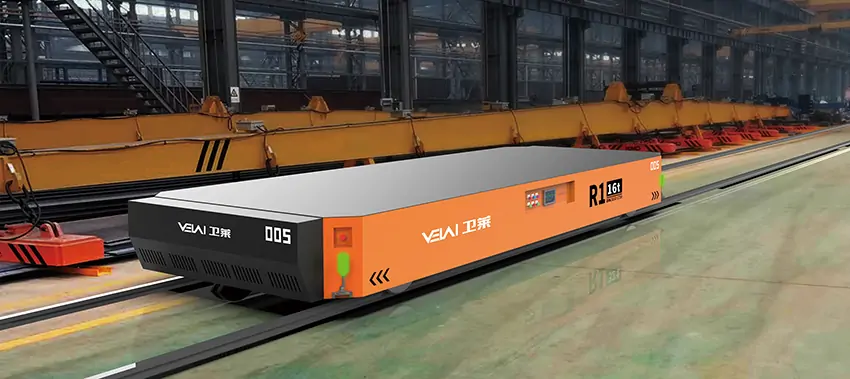

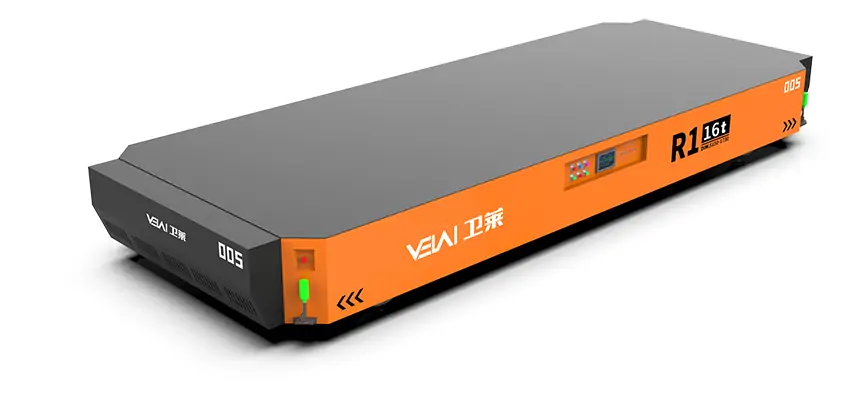

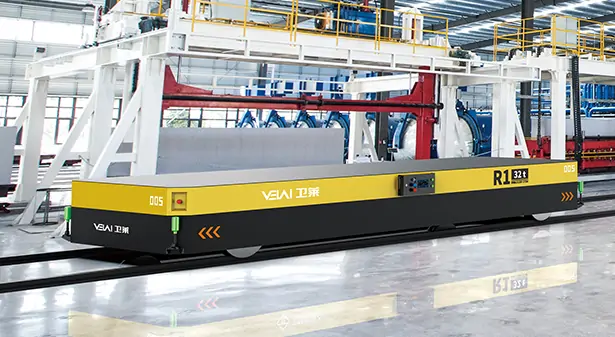

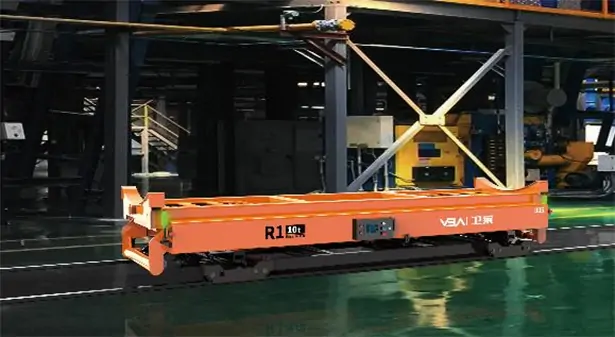

R1 Series AGV Rail Transfer Cart​

Product Introduction

The R1 series agv rail transfer cart is an intelligent handling device running on a preset guideway. Common load capacities are R1-16t, R1-50t and R1-100t, which are suitable for the transportation of large loads in logistics systems and production lines of workstation systems. Adopting power supply by skid line, barcode positioning or laser positioning, it is used to connect multiple logistics nodes. It is characterized by fast and flexible, simple configuration and easy maintenance. It can be operated automatically or remotely to reduce labor and transportation costs and improve transportation efficiency.

The R1 series agv rail transfer cart is designed for modern intelligent manufacturing and logistics system, equipped with advanced navigation control system, to realize the automation of material flow in the manufacturing plant, warehousing and logistics scenarios.

Features

• High-strength steel structure, equipped with a heavy-duty drive system.
• Modularized design, supporting three standard load configurations of 16T/50T/100 T.
• Optional end actuators such as an elevating platform and a roller conveyor.
• Multi-mode navigation system (barcode/laser/magnetic stripe guidance).
• Centralized scheduling management system (supports multiple AGVs working together).
• Industrial grade PLC control system
• Power supply from sliding contact line (standard), optional super capacitor energy storage system
• Intelligent power management system

R1-16 Ton Specifications

Application

R1 series AGVs are widely used in the following industrial fields:

• Intelligent manufacturing: used to efficiently complete the transfer of heavy parts such as engine/chassis in automobile manufacturing, large structural parts workshop flow in the engineering machinery industry, and the whole machine conveying and assembly line docking to manufacture household appliances.
• Warehousing and logistics: used in the access operation of three-dimensional warehouses, the transfer of containers in the port terminals and the cargo sorting scenarios in the logistics centers of the e-commerce; aerospace: used in special industries such as precision parts transportation, rail transit vehicle body assembly lines and new energy battery module production lines. In the field of warehousing and logistics: used in three-dimensional warehouse in/out operation, container transfer at port terminals, and cargo sorting in e-commerce logistics centers;
• Aerospace: used in special industries such as transportation of precision parts, rail transit car body assembly line, and production line of new energy battery modules.
