Free Standing Articulating Jib Crane

Product Introduction

Articulating Jib Crane

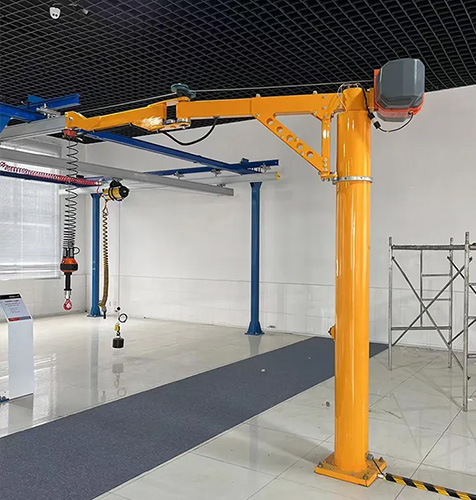

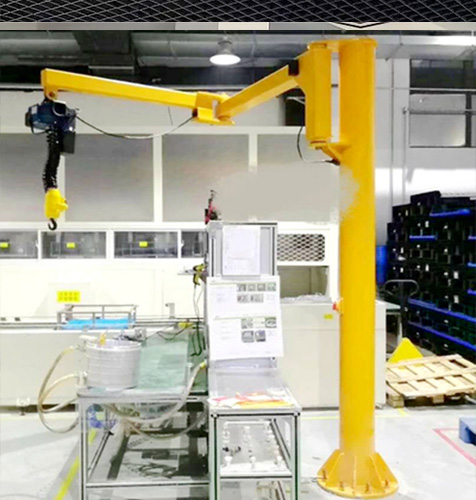

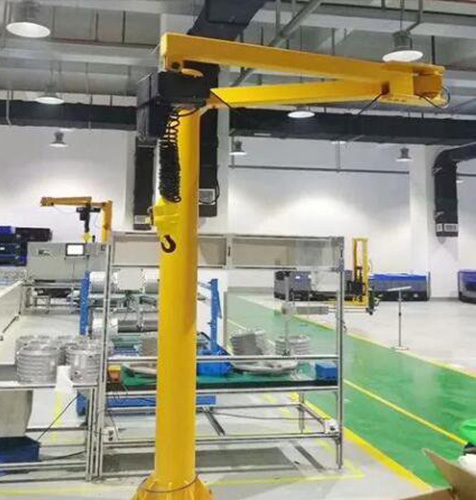

Free Standing Articulating Jib Crane is a small portable lifting equipment with a unique design of curved jib structure, which can be easily telescoped and rotated for simple and flexible operation and a wide range of activities. Its core structure consists of a horizontally rotatable mast or strut, the base cantilever supports 270° rotation, and the curved arm section can be rotated 180°. The two work in tandem to achieve 360° dead-angle-free coverage to meet the needs of lifting in multiple angles and directions.

Articulating Jib Crane is widely used in production and maintenance scenarios in machinery manufacturing, railroad, chemical, light industry and other industries. It is especially suitable for space-constrained locations, such as workshops, warehouses or production lines, and provides an efficient solution for lifting operations in tight environments.

Articulating Jib Crane can flexibly avoid obstacles in limited working areas and adapt to complex working environments.Articulating Jib Crane has a maximum rated load of 500kg, a standard lifting height of 3m and a customized slewing radius to ensure a perfect match with on-site working conditions. The hoist operation and cantilever rotation can be operated by wireless remote control, which greatly improves the convenience and safety of operation.

Free Standing Articulating Jib Crane Structure:

Free standing articulating jib crane consists of three parts: column, base cantilever, and foldable curved arm. The following are its structural characteristics:

• Column: provide stable support, fixed on the ground or wall.
• Base cantilever: can be rotated 270° to cover a large working area.
• Foldable jib: can be rotated 180° to realize full 360° coverage in concert with the base jib.
• Electric hoist: for lifting and carrying loads, supports wireless remote control operation.

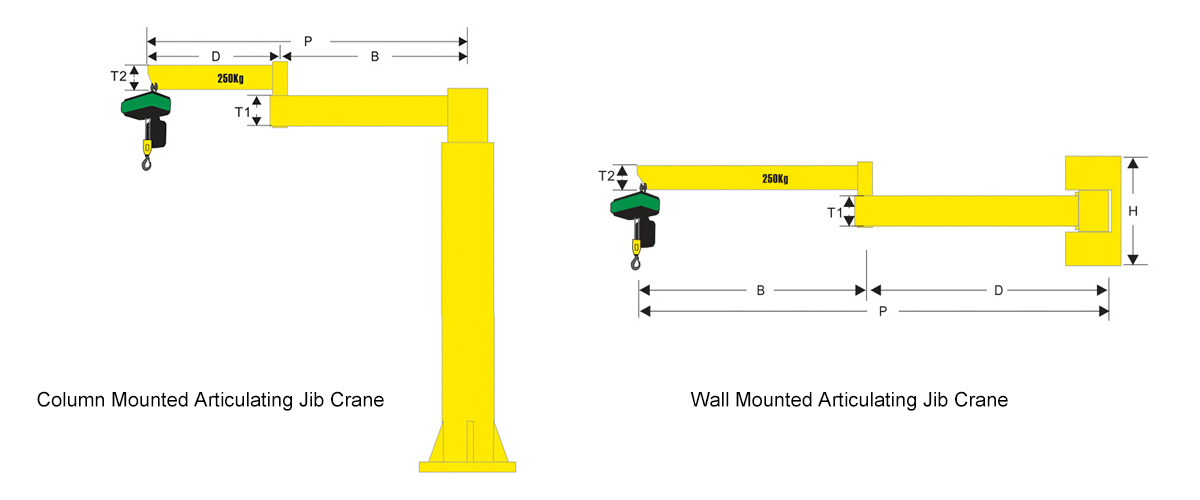

Technical Specification

Features

• Flexible Operation: Bendable and retractable, easy to reach inside the equipment, 360° dead angle free coverage, adapt to the needs of the multi-angle operation.
• Convenient Installation and Transportation: Segmented design with mounting base plate, no need for complicated foundation, easy installation and transportation.
• Efficient operation: supports frequent lifting and unloading, improves working efficiency, suitable for high-intensity operation scenarios.
• Compact design: small footprint, suitable for workshops, warehouses, and other narrow spaces, easily avoiding obstacles.
• Customized Configuration: Slewing radius, lifting height, etc. can be customized according to demand to meet diversified operational needs.
• Intelligent operation: support wireless remote control, improve the convenience and safety of operation, and realize precise load positioning.
• Applicable scenarios: light material handling, equipment installation, on and maintenance, production line transfer, etc.

Application

• Mechanical industry: lifting of components on production lines, assembly, and maintenance of equipment, precise positioning of heavy machinery.
• General scenarios: short-distance lifting and transportation in equipment-intensive areas, efficiency enhancement in frequently operated production lines, and precise operation in space-restricted environments.
• Railroad industry: repair and maintenance of locomotives and carriages, installation and transportation of rail equipment, and material lifting in narrow maintenance areas.
• Chemical industry: installation and maintenance of reactors and pipelines, light material handling in hazardous areas, efficient operation in equipment-intensive areas.
• Light industry: material transfer in the production line, installation and debugging of packaging equipment, cargo handling in the storage area.

Free Standing Articulating Jib Crane Supplier and Manufacturer

• Weihua provides professional consultation and design solutions to ensure that customers get cost-effective products and quality services.
• We provide on-site installation service or remote guidance to ensure that the equipment is quickly put into use. With 37 years of production experience and rich project practice, Weihua has won wide trust and cooperation from end users and agents.
• We offer lucrative commissions and risk-free cooperation opportunities for independent sales representatives so that partners and customers can benefit together.
• From design consultation to installation and commissioning, Weihua provides a one-stop service, so that customers can feel professional and efficient in every step.

Choosing Weihua is not only choosing high-quality products but also choosing a trustworthy long-term partner.
