European Electric Hoist Manufacturer- Weihua Heavy Machinery

Introduction
Application
Features and Advantages
Technical Specification
Related

Product Introduction

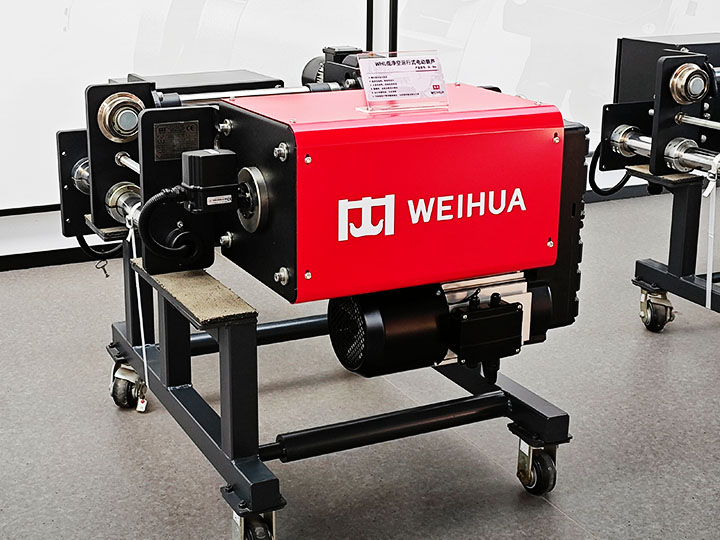

The European hoist is a new design of electrical wire rope hoist. It adopts advanced European design concepts and technologies, with a compact structure and simple appearance. The lifting mechanism includes the motor, reducer, drum wire rope, etc. They are together to complete the vertical lifting or lowering of goods. Its operating mechanism is responsible for the horizontal movement of the European electric hoist on the track. It usually uses frequency conversion control technology to achieve smooth operation. European hoist also has an advanced electric control system with good electronic components. It also has multiple safety systems to guarantee smooth operation.

There are two types, low-headroom type and standard headroom type for users to choose from. The main difference is that they are designed for different building structure heights and operating space requirements.

Low Headroom European Hoist: Specially for spaces with low ceiling heights to maximize vertical space utilization when lifting heavy objects. The electric hoist provides maximum lifting height within a limited height.

Standard headroom European hoist: Suitable for general industrial environments, it is designed to provide a stable and reliable lifting solution under conditions of sufficient ceiling height.

Main Application

European hoists are mainly in workshops, warehouse logistics, construction sites, and other fields. They are suitable for lifting and handling small and medium-sized items. Users could use European hoist alone or put it as a part of bridge cranes and gantry cranes to meet the material handling needs in different occasions.

Features and Advantages

Easy maintenance

The modular design makes parts easy replacement and daily maintenance.

Precise positioning

The variable frequency speed regulation technology achieves precise control of speed and position.

Lightweight design

Made of high-strength materials, European hoist reduces its own weight and is easy to install and maintain.

Low noise operation

Special noise reduction measures make the sound small, creating a quiet working environment.

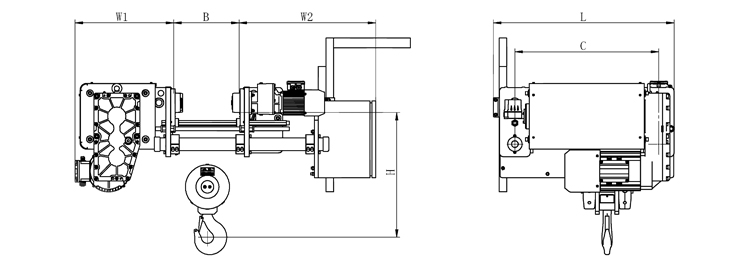

Technical Specification

Type	Load Capacity(T)	Lifting Height(m)	Lifting Speed (m/min)	Traveling Speed (m/min)	Lifting Motor Power(kw)	Rope Dia. (mm)	Group(ISO)	Rope Reeving
Single Girder	3.2	6/9/12/15/18	5/0.8	20/5	3.2/0.45	7	M5	4/1
	5	6/9/12/15/18	5/0.8	20/5	6.0/0.9	9	M5	4/1
	6.3	6/9/12/15/18	5/0.8	20/5	6.0/0.9	9	M5	4/1
	8	6/9/12/15/18	5/0.8	20/5	9.5/1.5	13	M6	4/1
	10	6/9/12/15/18	5/0.8	20/5	9.5/1.5	13	M5	4/1
	12.5	6/9/12/15/18	5/0.8	20/5	12.5/1.9	13	M5	4/1
Double Girder	5	6/9/12/15/18	5/0.8	20/5	6.0/0.9	11	M5	4/1
	10	6/9/12/15/18	5/0.8	20/5	9.5/1.5	15	M5	4/1
	12.5	6/9/12/15/18	5/0.8	20/5	12.5/1.9	15	M5	4/1
	16	6/9/12/15/18	4/0.6	20/5	16/2.6	18	M5	4/1
	20	6/9/12/15/18	4/0.6	20/5	16/2.6	18	M5	4/1
	20	6/9/12/15/18	3.4/0.5	20/5	16/2.6	18	M5	4/1
	25	6/9/12/15/18	3.4/0.5	20/5	16/2.6	18	M5	4/1
	40	6/9/12/15/18	4.9/0.8	20/5	38	20	M5	4/1
	63	6/9/12/15/18	3.3/0.5	20/5	38	20	M5	4/1
