Electrolytic Copper Intelligent Overhead Crane​

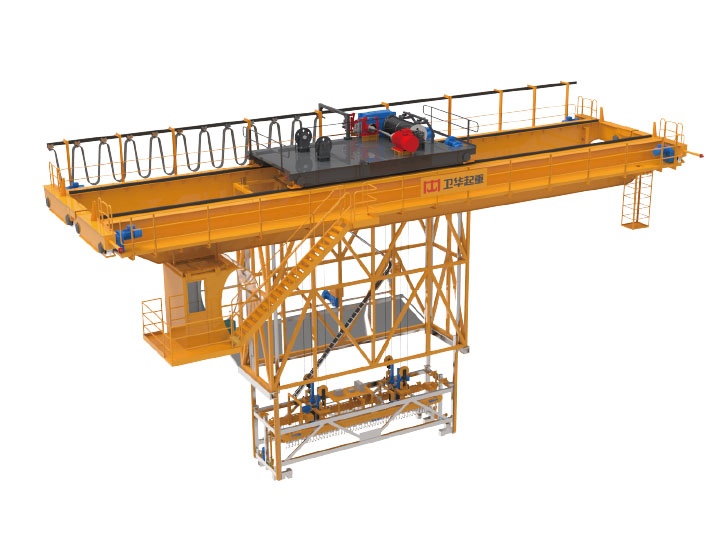

Product Introduction

The electrolytic copper intelligent overhead crane is a high-efficiency lifting equipment specially designed for the copper electrolysis refining process. Equipped with customized spreaders, it can accurately complete the gripping, transferring, and positioning of cathode and anode plates in the tank.

Working Process

• Anode plate lifting: Lifting the anode plate to be electrolyzed from the stacking area to the electrolyzer.

• Electrolysis process coordination: Help adjust the spacing of the plates during the electrolysis cycle to optimize the current distribution.

• Cathode plate removal: After electrolysis is completed, remove the copper-deposited cathode plate and transfer it to the cleaning or stripping station.

• Waste anode disposal: The residual pole plate is lifted and transported to the recycling area to complete the cycle operation.

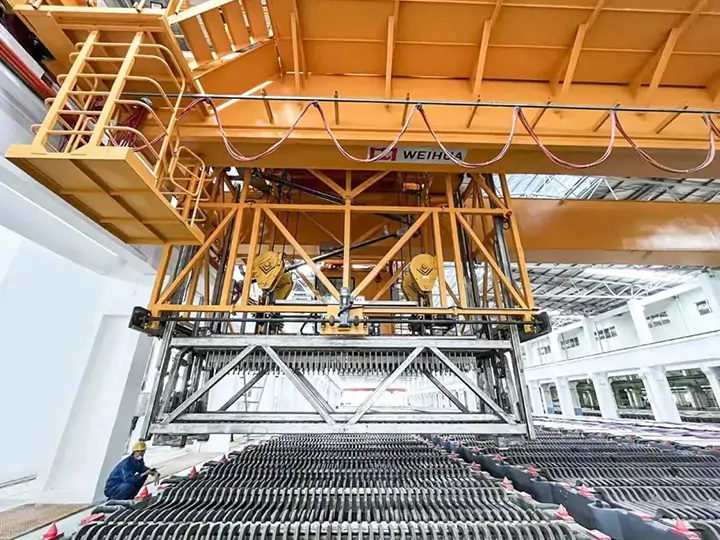

Electrolytic Copper Intelligent Overhead Crane​ Specialized Spreader System

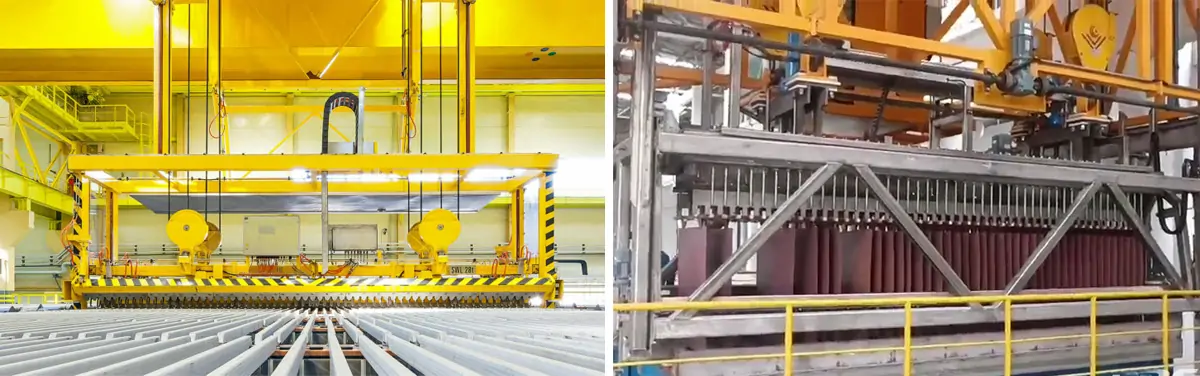

Weihua's self-developed spreader system for copper electrolysis adopts a high-strength stainless steel structure with excellent corrosion resistance and is designed for automated cathode/anode plate loading and unloading tank operation. The system integrates multi-functional integration, high-precision positioning, and reliable insulation and is the key equipment for the intelligent production of electrolytic copper. The modular system is suitable for all kinds of electrolytic tanks, effectively reducing the intensity of manual operation and increasing the service life of the equipment by more than 50%.

Core Features:

• Intelligent plate arranging system: integrated guiding device and slice tapping mechanism to ensure the accurate insertion of the starter slice into the tank.
• Multi-mode lifting: support cathode/anode plate lifting individually or jointly, improve the working efficiency by 30%.
• Dual-stage positioning system: adopts pre-positioning and laser precision positioning technology, with a repeatable positioning accuracy of ±2mm.
• Anti-splash design: flat push-type receiving tray realizes smooth opening and closing, reducing electrolyte splash rate by 95%.

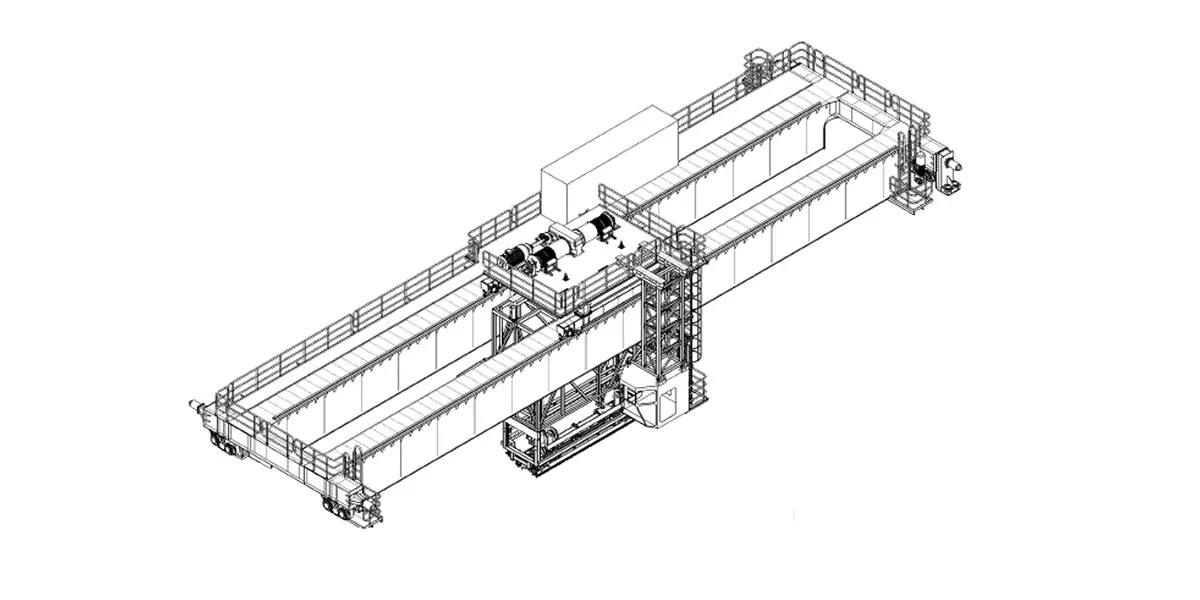

Structures

• Bridge structure: box beam design, with high strength and torsion resistance; special anti-corrosion treatment on the surface, adapting to the corrosive environment of the electrolytic workshop.

• Running mechanism: dual-rail independent drive system, smooth operation; frequency conversion speed control to achieve precise positioning (±5mm), end of multiple buffer and limit protection devices.

• Lifting trolley: double winch mechanism design, independent control of cathode/anode lifting, equipped with load cell and anti-shaking system, insulation treatment to prevent current interference.

• Specialized spreader system: anode spreader adopts multi-point clamping and anti-deformation design, cathode spreader adopts flexible contact to protect copper foil, and quick-change mechanism adapts to different specifications of pole plates.

• Intelligent control system: PLC+touch screen human-computer interaction interface with automatic alignment and process memory function, real-time monitoring of the operating status of each organization, and data recording to trace the production information.

Specifications

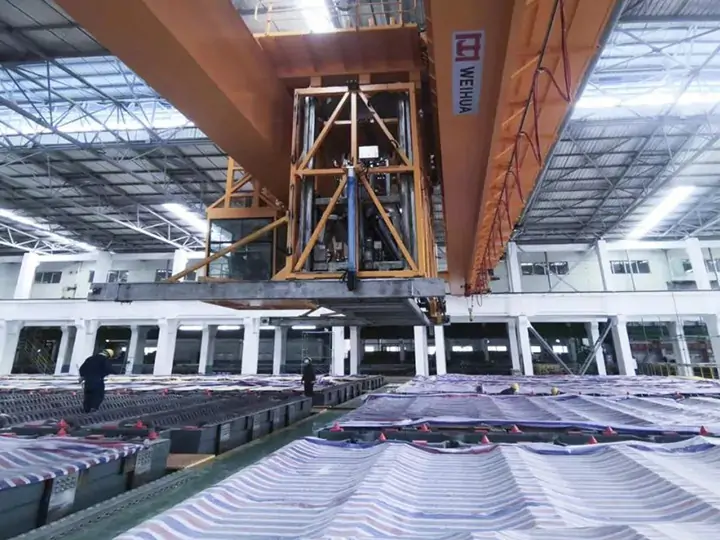

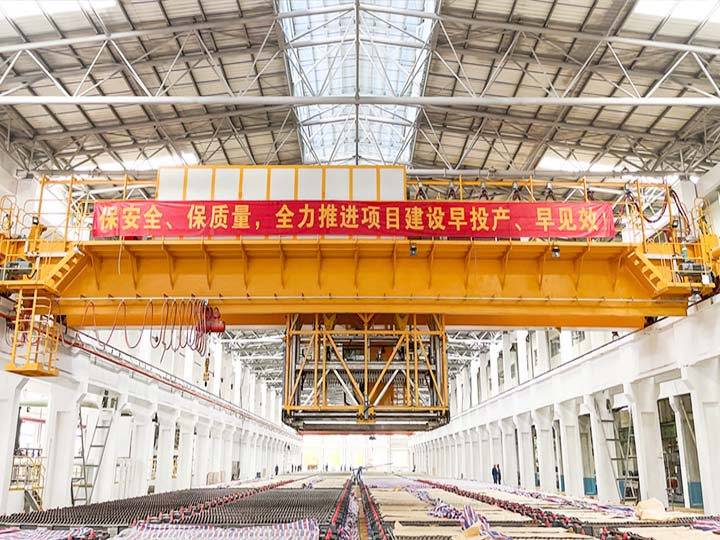

Application

The electrolytic copper intelligent overhead crane is specially designed for the copper electrolytic refining process and is mainly used in the electrolytic workshop of non-ferrous metal smelters. Its typical application scenarios include: automatic loading and unloading of cathode/anode plates, plate transfer and stacking, electrolytic cell maintenance, and other processes. This equipment is particularly suitable for continuous production in highly corrosive environments, and can meet the large-scale, high-intensity, and high-precision production needs of modern copper smelting enterprises, effectively improving the automation level and operation safety of the electrolytic process. Through the intelligent control system, it can perfectly adapt to electrolytic cells of different specifications and achieve seamless connection with upstream and downstream processes. It is an indispensable piece of equipment for the copper electrolytic production line.
