Light Cranes
BX type wall mounted jib crane belongs to the category of light and small lifting equipment. It could meet the material handling needs in various industrial and commercial environments. Compared with ordinary bridge and gantry cranes, it has the advantages of favorable price and simple structure.

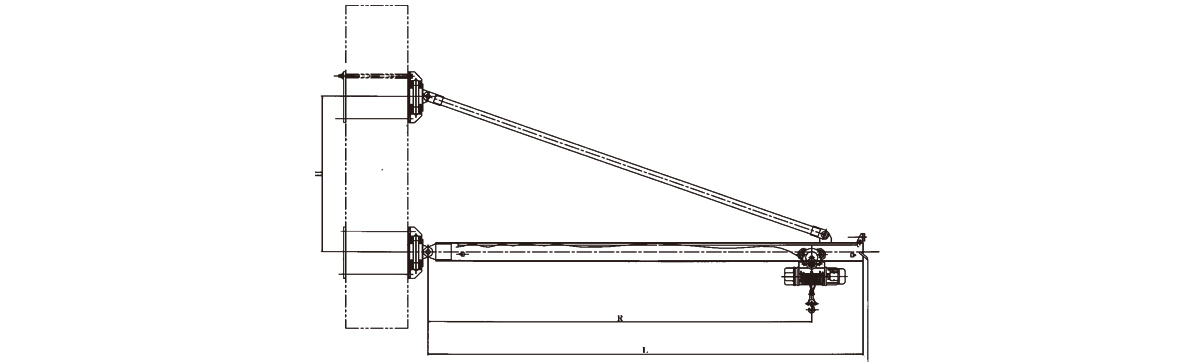

This type of jib crane is simply fixed and installed on the wall, providing great convenience for environments with limited working space. The bracket, rotary arm, and lifting structure together constitute the main structure of the equipment. The bracket is the support structure for the entire lifting equipment. The rotary and electric hoist are the main working parts of the whole equipment. Its arm can rotate within 180 degrees. The electric hoist can move left and right on the swing arm and lift the material.
| Lifting capacity(t) | 0.25 | 0.5 | 1 | |||||||
| Lifting height(m) | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 5 | 5.5 | 6 | |
| Valid radius(m) | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | |
| Working system | A3 | |||||||||
| Lifting speed(m/min) | Slow speed | 0.8 | ||||||||
| Normal speed | 8 | |||||||||
| Circulate speed(m/min) | 20 | |||||||||
| Slewing angle(Degree) | 180 | |||||||||
| Centre height(m) | 1.2 | 1.6 | 2.56 | |||||||
