C1 Series AGV Forklift

Introduction
Features
Specification
Application

Product Introduction

AGV Forklift is an intelligent forklift with autonomous navigation technology. It is mainly used for stacking operations in automated stereoscopic warehouse systems to realize the full automation of material handling, stacking, loading, and unloading operations, with a maximum load of 1400kg. According to the instructions of the computer system, combined with laser SLAM, visual navigation, or a hybrid navigation system, the equipment can travel in the aisles between compact and narrow stereoscopic shelves, and use the equipped forks to take out or store the goods on the shelves. The machine has the advantages of sa imple structure, light weight, fast speed, and a small turning radius.

Stacking forklift AGV can seamlessly connect to WMS (warehouse management system), MES (manufacturing execution system), and other information platforms to improve warehousing and production logistics efficiency and reduce labor costs. It is suitable for intelligent handling needs in manufacturing, warehousing, logistics, food, and medicine.

AGV Forklift Features

Flexible operation

Adopts omni-directional drive system with small turning radius. Occupying less space in the channel, supporting narrow aisle operation, flexible path planning, adapting to high-density warehousing needs.

Safety and Stability

Multi-safety protection system, the gantry frame is made of high-strength alloy steel with one-piece welding molding, strong rigidity and high precision; the electric cylinder jacking system is easy to maintain, without the risk of hydraulic oil leakage.

Intelligent SLAM navigation

Adopts laser SLAM technology with high positioning accuracy and supports real-time planning and adjustment of the path.

Lightweight design

The whole machine is compact, lightweight and fast running, with a load capacity of up to 1.4 ton, which improves handling efficiency.

Specifications

Overall dimensions LWH(mm)	174414902405
Rotation radius(mm)	1420
self weight (kg)	900
Rated oad(kg)	1400
Lifting height(mm)	1500
Obstacle clearance height(mm)	5
Obstacle crossing width (mm)	10
Gradeability(%)	≥5
Movement style	Forward, backward, and spin in place.
Navigation	Forward, backward, and spin in place.
noise	≤75dB
way of communication	WiFi,5G(optional)
charging method	Automatic+manual
Safety Protection
Actively avoid obstacles	Front Laser Obstacle Avoidance
Audible and visual alarm	light
Collision bar detection	Front Pneumatic Crash Bar Detection
emergency button	Front Left/Right Emergency Stop Button
Motion Performance
Stop position accuracy(mm)	<±5
Angle of stop position(°)	<±1
Rated operating speed (no load)(mm/s)	1000
Rated operating speed(rated load)(mm/s)	800
Battery performance
Battery Type	Lithium Iron Phosphate
Battery rated voltage(V)	48
Capacity(Ah)	80
Working time under rated working conditions(h)	8
Charging time(h)	Forward, backward,and spin in place.

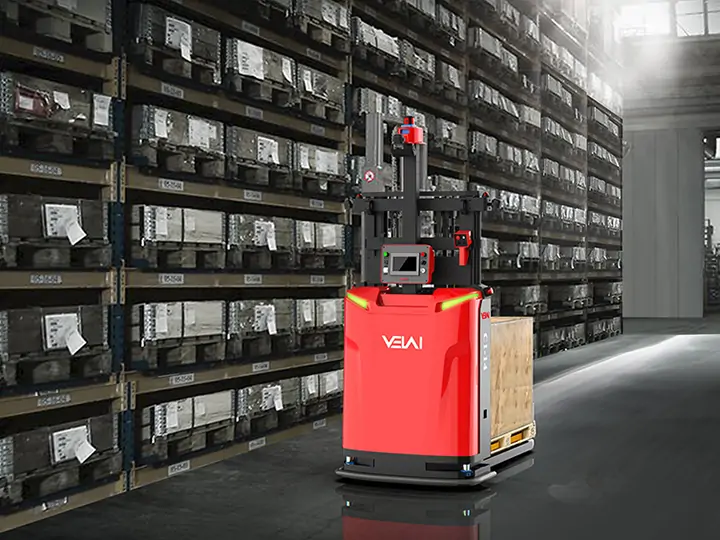

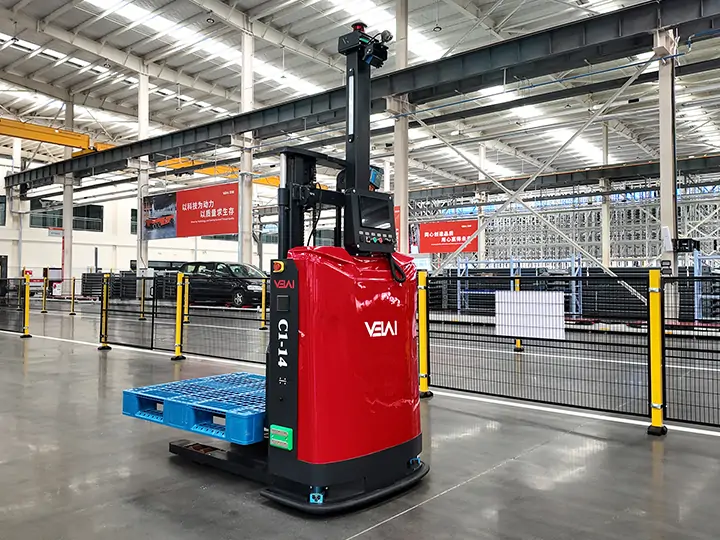

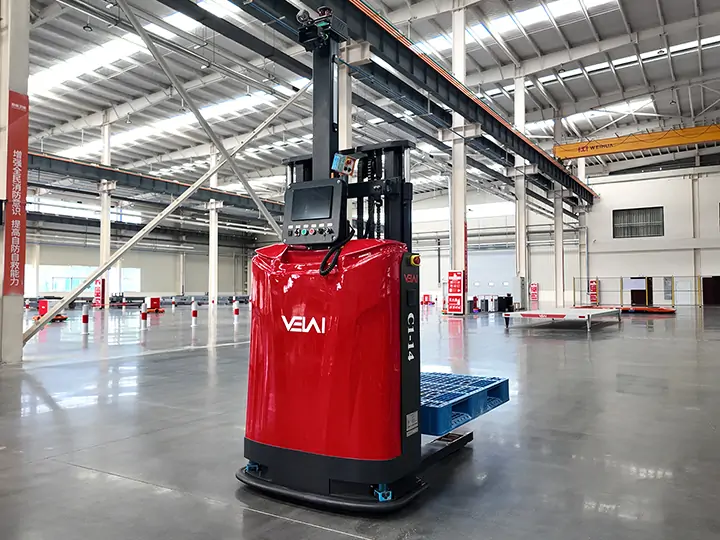

Product Show

Application

Intelligent AGV stacker forklifts are widely used in the following fields through intelligent, flexible, and high-precision logistics solutions:

Intelligent Warehousing: automated high-level shelf access and cross-floor handling to improve storage density and access efficiency.
Manufacturing logistics: automated distribution of raw materials, semi-finished products, and finished products in the automotive, 3C, and home appliance industries.
Food and medicine: to meet the unmanned handling needs in clean workshops, cold chain warehouses, and other special environments.
E-commerce logistics: for automatic sorting, loading, and unloading, and transportation in large distribution centers, reducing artificial dependence.
Heavy industry: handling heavy materials in the steel, chemical, and other industries to improve operational safety.
