As a highly efficient and flexible lightweight lifting equipment, jib cranes are widely used in various industrial fields and have become an important tool for improving production efficiency. In this article, we will discuss the five types of jib cranes produced by Weihua, including their structural characteristics, working principles, advantages, areas of application, and maintenance tips. Whether you are a first-time buyer or want to optimize your existing equipment, this article will provide you with comprehensive guidance to help you make the best choice.
Jib crane is a light lifting equipment designed for modern production needs, usually used in conjunction with an electric chain hoist, especially suitable for short distances, high frequency, high density lifting tasks. With a compact structure, small footprint, easy operation, convenient maintenance, energy energy-efficient features, can effectively improve work efficiency and reduce operating costs. Jib cranes are widely used in workshops, warehouses, production lines, and other places, and are the ideal solution for light lifting operations.
According to the different installation methods and structural characteristics, there are 5 different types of jib cranes, including floor-mounted jib cranes, mobile jib cranes, wall jib cranes, wall traveling jib cranes, and articulating jib cranes. Below are the characteristics of each type of jib crane:

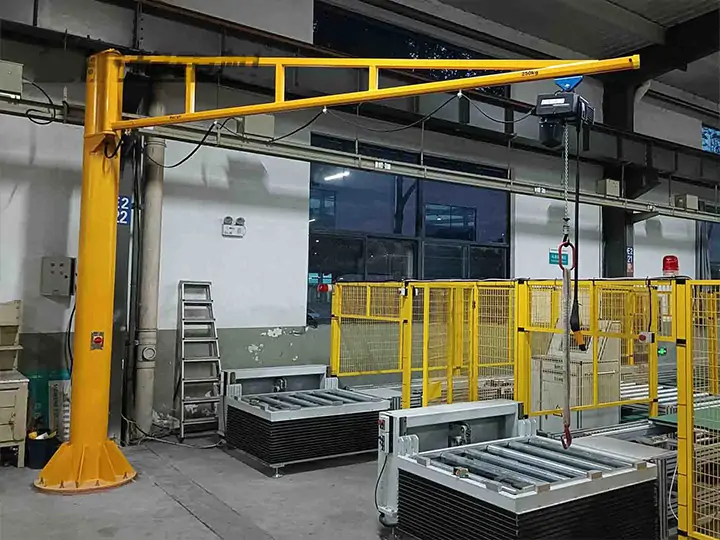

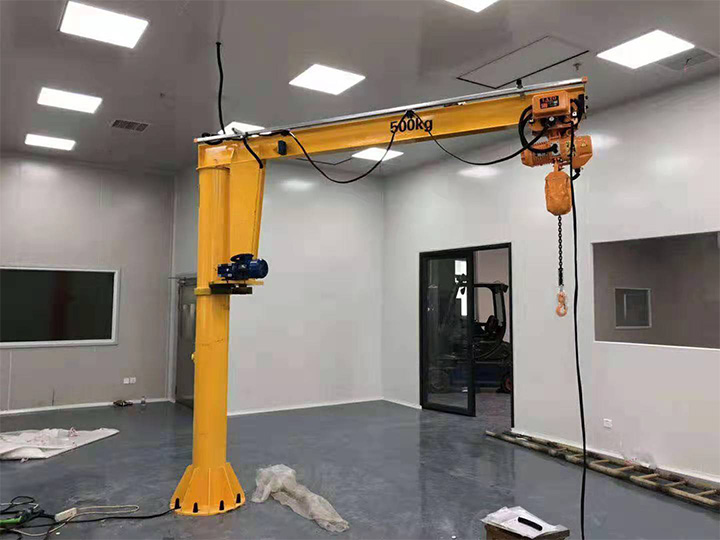

It consists of a column and jib, with a simple structure and easy installation. The column is fixed to the ground or supporting structure through ground bolts, which are highly stable and suitable for fixed working areas. The lifting capacity is usually 0.25-5 tons, can be equipped with a manual or electric hoist, suitable for frequent lifting operations. Its rotation angle is generally 180°-360°, covering a wide range, commonly used in the workshop for material handling, equipment installation, and maintenance of specific workstations and other scenes, especially suitable for production lines, assembly workshops, and small warehouses.

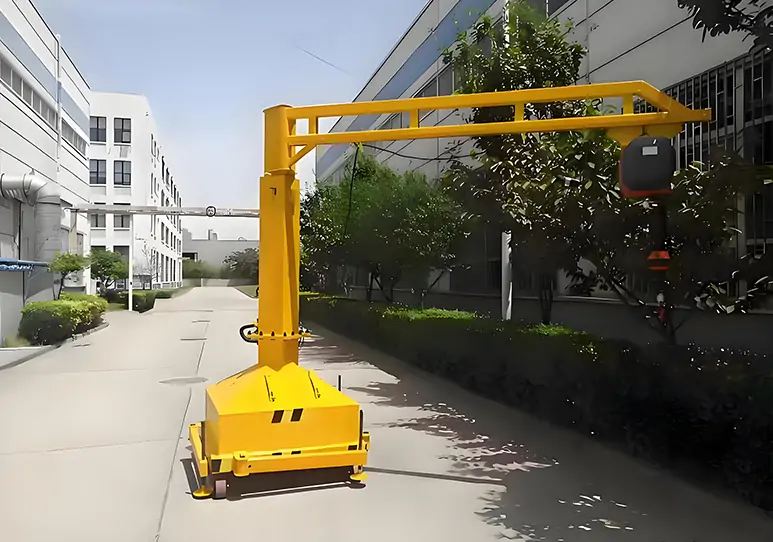

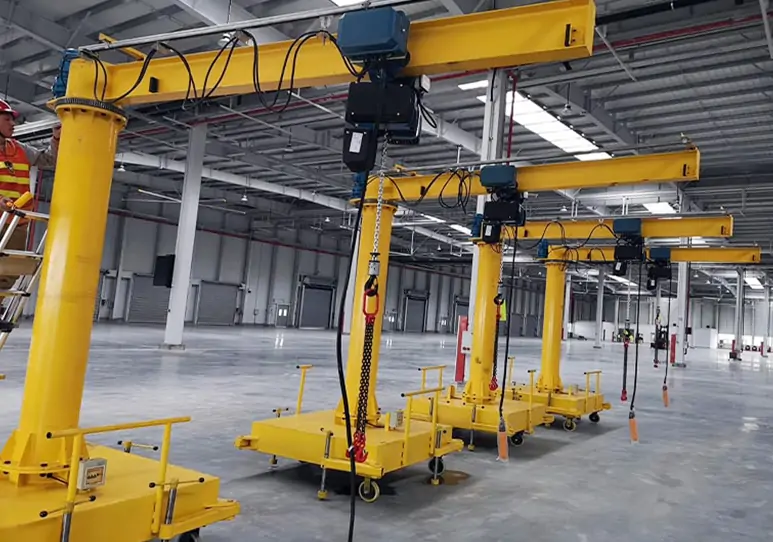

Mobile Jib Crane is equipped with high-strength universal wheels or track wheels at the bottom, it can be moved flexibly to adapt to the lifting needs of different locations. No need for complex installation, the lifting capacity is generally 0.5-10 tons, supporting manual or electric drive. Its wide range of movement, suitable for large warehouses, logistics centers, and temporary workplaces, can quickly adjust the lifting point, and improve operational efficiency. It is especially suitable for scenes where the location of goods storage is not fixed or the operation area needs to be changed frequently.

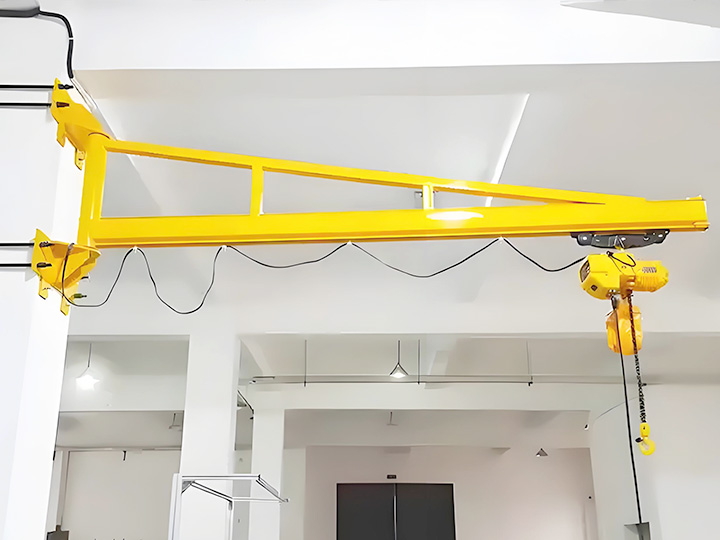

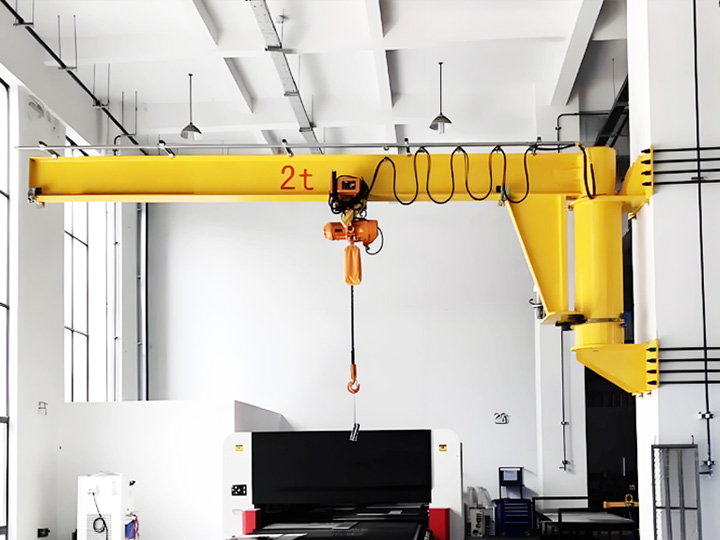

Wall Jib Cranes are installed on the wall or column, it saves floor space and has a compact structure. The lifting capacity is usually 0.25-3 tons, and the rotation angle is usually 180°, which is suitable for corners of workshops with limited space, wall areas, or narrow passages. Its design makes full use of vertical space, does not affect the layout of other equipment, is commonly used in small workshops, maintenance stations, and production lines next to the material handling, especially suitable for space constraints but needs to work efficiently.

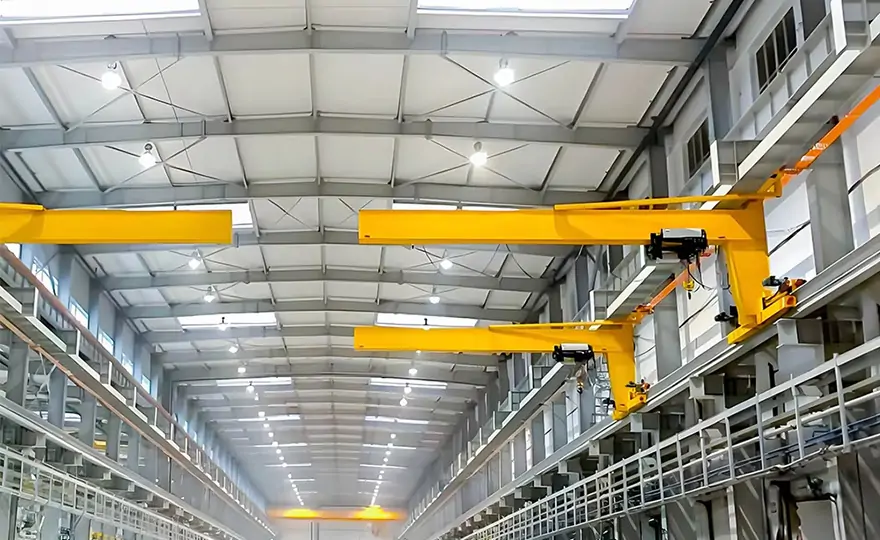

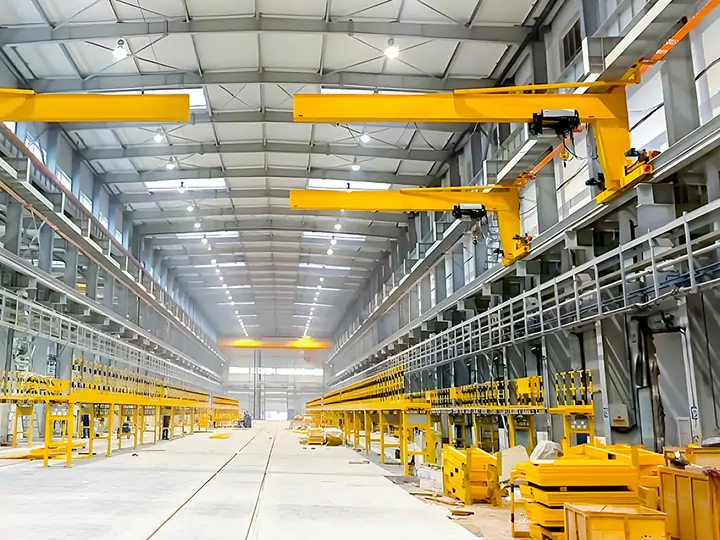

Wall Traveling Jib Cranes move along the wall or column on the track, covering a wide range of lifting capacity is generally 1-10 tons. Its structure combines the advantages of fixed and mobile, supporting a long-distance, wide range of lifting tasks. It is suitable for large workshops, warehouses, and production lines, and can efficiently transfer heavy materials or equipment. Wall-mounted jib cranes can also be customized in terms of track length and load capacity to meet diversified operational requirements.
Wall-Mounted Jib Crane
The boom of Articulating Jib Cranes can be folded or telescopic, saving space and easy to store. The lifting capacity is usually 0.25-2 tons, supporting complex lifting tasks such as bypassing obstacles or working in narrow spaces. Its high flexibility makes it suitable for maintenance workshops, automotive service stations, and special workplaces where space is restricted. The curved arm design allows it to adapt to a wide range of complex working conditions, making it the ideal solution for special lifting needs.
When choosing a jib crane, the following key factors need to be considered:
The working environment: assess the size of the site, the layout of the space, and the ground conditions. For example, large open spaces are suitable for mobile jib cranes, while narrow areas are more suitable for wall or articulating jib cranes.
Characteristics of the item to be lifted: Analyze the weight, size, and shape of the item. Heavy or bulky items may require a more stable fixed-post Jib Crane, while small, lightweight objects can be handled with a flexible Mobile Jib Crane.
Frequency of lifting: Where the need for frequent lifting is high, choose equipment that is stable and easy to operate. For example, when a small machine shop frequently lifts small parts in a specific area, a fixed-post jib crane is the ideal choice.
Space requirements: For places with limited space, space-saving design is especially important. Wall Jib Cranes make the best use of wall space, while Folding Jib Cranes are flexible enough to cope with a wide range of complex conditions.
Small machine shop: frequent lifting of small parts, fixed column jib cranes are more suitable.
Large warehouses: Mobile jib cranes are more suitable for flexible handling of goods that are stored in irregular locations.
Compact workshop corners: wall-mounted jib cranes make use of wall space to maximize the use of limited areas.
Maintenance workshop: Higher requirements for space utilization, folding jib cranes can flexibly cope with various lifting needs.
In order to ensure the safe and reliable operation of jib cranes and extend their service life, the following maintenance measures are crucial:
Jib cranes are of various types, each with its characteristics, suitable for different operating scenarios. When selecting the type, you need to comprehensively consider the working environment, the characteristics of the lifted items, operating frequency and space limitations, and other factors. Fixed column jib cranes are suitable for frequent operations in fixed areas; mobile jibs are portable and flexible, and can meet the needs of multi-location lifting; wall jib cranes save floor space, and are ideal for narrow areas; folding jib cranes are highly flexible to cope with complex lifting tasks.
Scientific maintenance not only extends the life of the equipment but also ensures its safe and reliable operation. Through reasonable selection and careful maintenance, jib cranes will play an important role in industrial production, effectively improve efficiency, reduce labor intensity, and provide a solid guarantee for the efficient operation of enterprises.
