Rail mounted gantry cranes (RMG) are widely used in ports, railroad yards, and container yards for lifting and transportation of heavy goods. In this article, we will introduce you to the different types of rail mounted gantry crane prices in detail. Please read on:
Rail-mounted gantry Crane, short for RMG, is a type of lifting equipment specially designed for loading, unloading, and transporting heavy goods. The two side outriggers are mounted on a fixed track on the ground, allowing the crane to move smoothly and directionally along the track.
According to different structural features and application scenarios, rail mounted gantry cranes (RMG) can be categorized into the following types.
The Standard Rail Mounted Gantry Crane consists of two vertical outriggers and two parallel main girders. The design is simple, reliable, and suitable for regular cargo handling. AC frequency conversion control technology is usually used to realize efficient operation. Standard rail gantry cranes are widely used in container yards, harbors, heavy machinery manufacturing, large steel structural components, and other places where a large number of standard-sized goods need to be handled.
One outrigger of the semi gantry crane is fixed on the ground, and the other outrigger is mounted on a higher support structure, forming an “L”-shaped or “semi-gantry” shape. Suitable for use in limited spaces, the open side allows vehicles or other equipment to pass underneath. Commonly used on factory floors, especially when crossing obstacles or integrating with existing production lines.

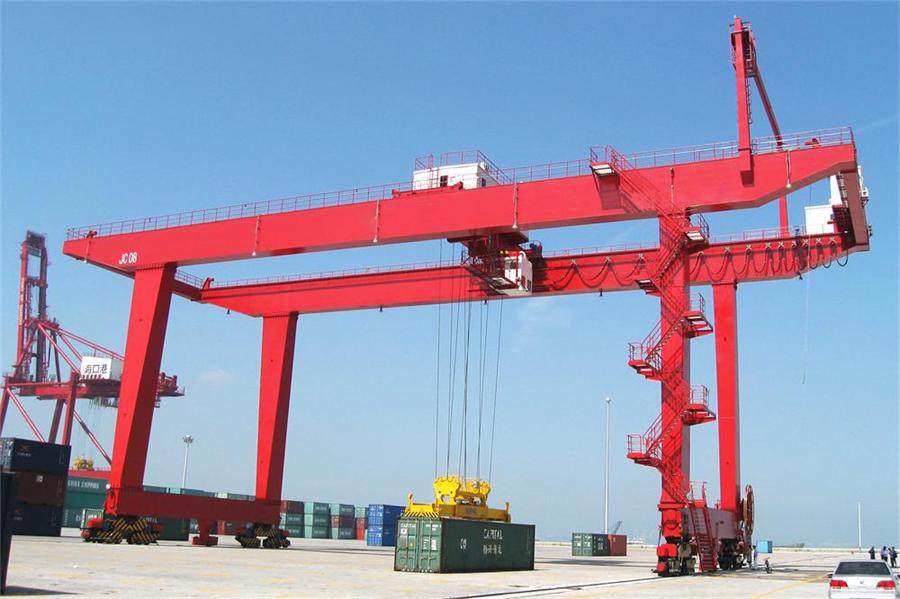

Cantilever Rail Mounted Gantry Crane is based on a gantry frame, and a cantilever is added to extend the operating range. Higher flexibility and able to cover a wider operating area. The length and position of the cantilever can be adjusted according to actual needs. Suitable for location-restricted scenarios where additional reach is required to lift or place goods.
The above three types of rail mounted gantry cranes have their own unique design and advantages, and the selection of the right type depends on the specific application environment, the type of goods, and operational requirements. If you have related needs, the Weihua team can customize according to your specific needs.
| Capacity | 30.5-350t |
| Span | 18-50m |
| Lifting height | 10-16m |
| Lifting speed | 12-46m/min |
| Cross travelling speed | 45-70m/min |
| Long travelling speed | 45-100m/mim |
| Working class | ISOA6-A8/FEM2M-4M |
| Power source | As your demands |
| Other | According to your specific usage, specific model and design will offer |
The price of Rail Mounted Gantry Crane (RMG) depends on the following factors:
| Lifting capacity range | Span range | Price range | Applications |
|---|---|---|---|
| 5-40 tons | 10-30 meters | $10,000 - $50,000 | Factory floors, warehouses |
| 40-100 tons | 30-50 meters | $200,000 - $2 million | Railroad yards, medium-sized terminals |
| 50 - 500 tons | Above 40 meters | $2,000,000 - $5,000,000 | Large ports, logistics hubs |
Weihua, as a globally recognized crane manufacturer, is committed to providing customers with the best prices and solutions for rail mounted gantry cranes. RMG cranes are not only limited to container loading and unloading, but are also suitable for a variety of scenarios that require the handling of large and heavy loads. We can provide a wide range of parameters and configuration options to meet different operational requirements according to the specific needs of our customers.
If you are considering investing in a rail-mounted gantry crane that can enhance work efficiency and safety, then Weihua is the ideal partner for you. Contact us today for a free quote.
