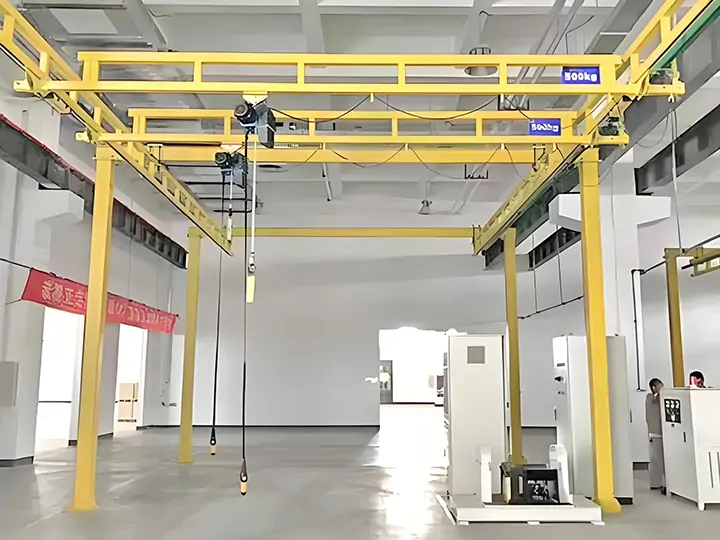

KBK Free Standing Bridge Crane System

Introduzione al prodotto

The KBK Free Standing Bridge Crane System is a modular lightweight crane system that can be suspended from the roof or superstructure of a building without additional support, making it easy and inexpensive to install. The system is suitable for use in localized or whole workshop areas and is stable and reliable. Its self-supporting design enables it to perform frequent overhead material handling tasks efficiently. And it can be installed on 15cm thick reinforced concrete floors, avoiding additional pressure on the roof structure. The prefabricated standardized module design allows the system to be flexibly expanded according to production requirements. It helps companies optimize space utilization, reduce energy consumption, and increase productivity.

The KBK crane system supports manual, semi-automatic, and fully automatic operation, and is widely used in high-precision material handling scenarios in machinery manufacturing, electronics, warehousing, and logistics industries. Its lifting capacity ranges from 0.25 to 3 tons, which is especially suitable for modern production conveyor lines and can realize linear round-trip, circular transport, and other material handling modes. The system's flexible operation direction supports seamless switching from single-line to multi-line and circular tracks. It is widely applicable to material transportation in various industries to meet the demand for efficient and precise transportation.

Types of KBK Free Standing Bridge Crane

KBK Free Standing Bridge Crane System offers a wide range of models, including KBK monorail suspension cranes, single girder, double girder, jib cranes, single/double gantry cranes, and stacker cranes, etc., to meet the diversified needs of different industries. Whether for efficient material handling or precision assembly, our systems provide you with flexible and reliable solutions. Feel free to contact our professional team to customize the most suitable crane system for you, helping to improve productivity and optimize workflow!

KBK Flexible Free Standing Bridge Crane System

KBK Rigid Free Standing Bridge Crane System

KBK-D Type Free Standing Bridge Crane System

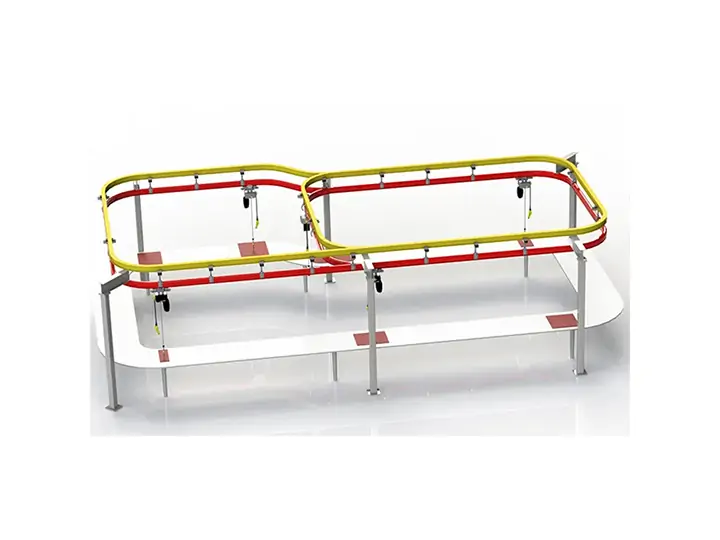

KBK Type D Free Standing Bridge Crane: With standardized components, it can be combined with loop, fork, and mesh lines to support bi-directional material conveying. Each trolley is independently driven by electric power, not limited by length, with a conveying capacity of 3000 kg, suitable for flexible material transfer needs.

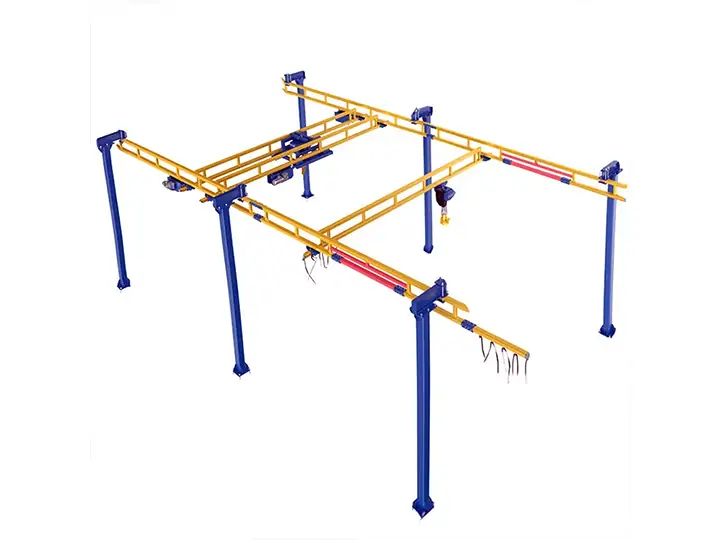

KBK Flexible Free Standing Bridge Crane: It consists of standard linear rail and auxiliary parts. The trolleys at both ends of the main beam can run on the vertical rail, and it is equipped with chain hoists, which is suitable for plane material transportation. Double track design enhances the load-carrying capacity, suitable for large-span heavy material lifting.

KBK Rigid Truss Free Standing Bridge Crane: It adopts a rigid truss double main girder structure, with a lifting capacity of 0.25~5 tons, and increased hook height, suitable for space-restricted places. Independently installed on the ground, with an overhead crane or gantry crane cross operation, flexible expansion, low cost, KBK crane adapts to a variety of working environments.

KBK Free Standing Bridge Crane System Parts

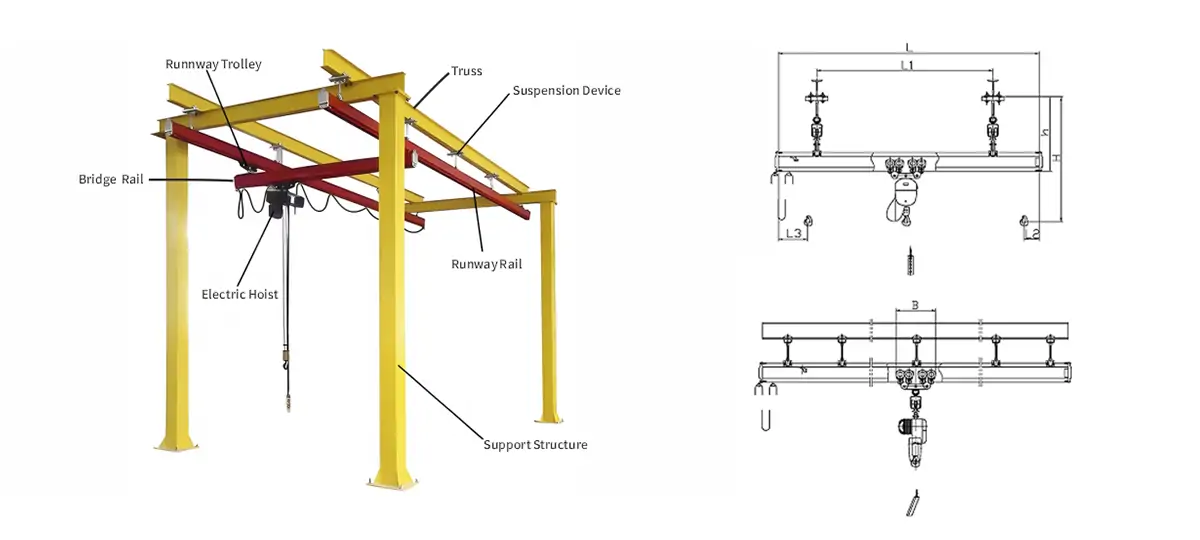

The KBK crane system consists of standardized modules, mainly including rails, suspension devices, traveling vehicles, and various functional components. The lifting device is usually an electric chain hoist, but other tools, such as manipulators or welding torches, can also be suspended and used as tool rails as required. The lifting capacity of the system ranges from 250 kg to 3,000 kg, which meets the material handling requirements of different working conditions. All components comply with KBK standards, and the entire KBK crane system is compatible, flexible, and efficient for high-precision operation in a wide range of industrial scenarios.

Specifiche

Vantaggi

• Highly customized: KBK freestanding bridge crane system can flexibly combine straight rails, curved rails, switches, and turntables according to specific needs. Adapting to a variety of line layouts, and supporting reverse operation or closed-loop connection to satisfy different operating scenarios.
• Large span and high flexibility: Overall structure is compact and lightweight, supporting large span suspension and wide working space. Suitable for material handling with a lifting capacity below 3.2 tons.
• Compact structure and convenient installation: Adopting a lightweight profile and standard modularized design, it is easy to install and debug, and can be put into use quickly through bolt connection, saving plant space and reducing energy consumption.
• High-efficiency traveling structure: Traveling mechanism is stable and adapt to frequent elevated material conveying tasks, support indoor and outdoor working conditions, and run smoothly and reliably.
• Diversified operation: In addition to manual operation, the system supports semi-automatic or full-automatic operation, which improves operational efficiency and reduces labor costs.
• Wide applicability: Suitable for workshop, warehouse and other environments, the working temperature range is from -20℃ to +60℃, and protective measures can be taken in special environments.

Applicazione

KBK free standing bridge crane is fast, stable, and highly flexible. Whether it is a monorail, single girder, or double girder KBK crane system, it can be flexibly configured according to the actual needs and adapted to diversified working environments and operational requirements. It is widely used in automobile manufacturing, the electronics industry, food processing, pharmaceutical manufacturing, warehousing and logistics, machinery manufacturing, and textile and metal processing industries. Specific application scenarios are as follows:

Automotive manufacturing: In automotive production lines, KBK rail cranes are for the transportation, assembly and inspection of parts.

Electronics manufacturing: KBK cranes are equipped with a precision control system, which can stably transport and position electronic components to avoid damage during transportation.

Food processing: KBK cranes are made of clean materials that meet hygiene standards. Suitable for the transportation and storage of food raw materials and finished products, as well as for material handling in production lines.

Pharmaceutical manufacturing: In pharmaceutical manufacturing, KBK cranes are for the transportation and packaging of pharmaceutical raw materials and finished products;

Warehouse logistics: For loading and unloading, sorting and storage of goods.

KBK Free Standing Bridge Crane Manufacturer

As a leading global lifting equipment manufacturer, Weihua Global specializes in providing high-performance and reliable KBK Free Standing Bridge Crane Systems. With years of industry experience and technology accumulation, we focus on providing customized solutions for our customers, covering a wide range of KBK monorail, single girder, double girder, jib, and gantry cranes to meet the diversified needs of automotive manufacturing, electronics industry, food processing, warehousing and logistics, and so on.

Choose Weihua, you will get:

• High-quality products: comply with international standards to ensure safety and performance;
• One-stop customized service: provide one-stop customized design solutions according to your needs to optimize production efficiency.
• Global support: perfect after-sales service network, one-year warranty for the whole machine, on-site installation and technical guidance available.

Contact our professional team today for exclusive solutions!
