Produkt-Einführung

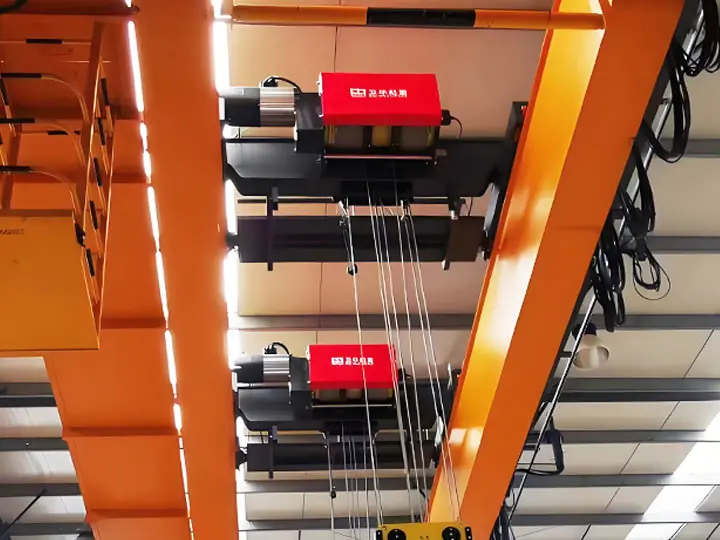

The European hoist trolley for double-beam cranes is an efficient lifting equipment that integrates advanced European design concepts and technologies. And it is widely applicable to various industrial environments. Its compact structure and superior performance can significantly improve work efficiency and safety.

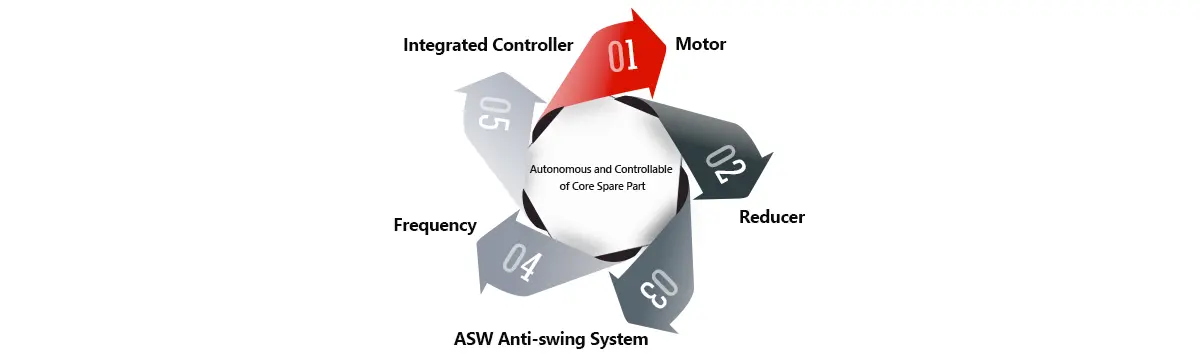

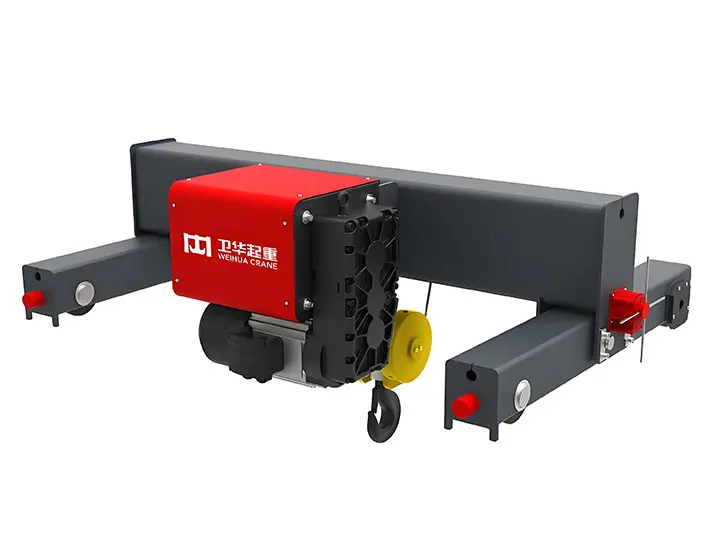

The European hoist trolley is the core component of the system and has many advanced technologies. It adopts a modular design for easy maintenance and upgrading. The trolley is equipped with a high-performance motor and a variable frequency speed regulation system, which realizes stepless speed change and smooth start and stop, reduces mechanical shock and improves operating accuracy. In addition, the European hoist trolley is also equipped with an advanced braking system to ensure that it can stop quickly and safely under any circumstances.

The lifting mechanism includes components such as drums, wire ropes, pulley blocks and hooks. These key components are made of high-strength materials and are specially treated to enhance durability and fatigue resistance. The drum is reasonably designed to ensure that the wire rope is evenly wound to avoid knotting or excessive wear. The hook is equipped with an anti-slip device to further improve the safety of operation.

Hauptanwendung

Manufacturing plants: in automobile manufacturing, mechanical processing and other plants to transport and install heavy equipment and parts to improve production efficiency.
Logistics warehousing center: in warehouses and distribution centers for loading, unloading, stacking and sorting of goods, optimizing storage space utilization and ensuring efficient operation.
Port terminals: suitable for loading and unloading of containers and other heavy goods, with strong lifting capacity and span to ensure efficient material handling capabilities.
Construction sites: at construction sites to transport construction materials and install heavy machinery and equipment, providing high-precision operating performance to ensure project progress and safety.

Merkmale und Vorteile

Compact design

small size and compact structure, suitable for environments with limited space, improving operation flexibility and equipment utilization.

Efficient operation

adopts high-performance motor and variable frequency speed regulation technology to achieve smooth start and stop, reduce mechanical shock and improve work efficiency.

Sicher und zuverlässig

with multiple safety protection devices such as overload protection, limit switch and emergency stop button to ensure the safety of the operation process.

Strong durability

key components are made of high-strength materials and are specially treated to have excellent durability and corrosion resistance, extending service life.

Technische Spezifikation

Lifting Capacity(t)	Arbeitsnote	Lifting speed (m/min)	Lifting height (m)	Number of falls	Travelling speed (m/min)	Height of trolley(mm)	Hook upper limit (mm)	Trolley wheel gauge (mm)
5	M5	5/0.8	≤ 24	4/1	2~20	500	330	1000
10	M5	5/0.8	≤ 24	4/1	2~20	605	520	1000
16	M5	3.3/0.53	≤ 16	6/1	2~20	700	860	1300
16	M5	5/0.8	≤ 24	4/1	2~20	670	800	1300
20	M5	5/0.8	≤ 24	4/1	2~20	670	800	1300
32	M5	3.3/0.5	≤ 16	6/1	2~20	750	975	1300
32	M5	5/0.8	≤ 24	8/2	2~20	720	1075	1300
40	M5	5/0.8	≤ 24	8/2	2~20	720	1075	1300
50	M5	3.3/0.5	≤ 24	12/2	2~20	770	1100	1400
63	M5	2.4/0.4	≤ 21	16/2	2~20	770	1100	1400
80	M5	2.4/0.4	≤ 21	16/2	2~20	785	1150	1600
