Coil Lifting C Hook

Product Introduction

Coil lifting c hook is a mechanical tool for loading and unloading coils of steel, which is also known as crane c hook because it is a hook type spreader and its shape and structure resemble the letter C. Coil lifting c hook is made of high-strength alloy steel forging with a unique C-shape opening design (the inner diameter of which can be customized from 300-2000mm) that can be perfectly adapted to the curvature of the steel coil and the self-locking jaw device (with a safety factor of 4:1). The unique C-shaped opening design (inner diameter 300-2000mm can be customized) can perfectly fit the curvature of the steel coil, together with the self-locking jaw device (safety factor 4:1), the coil lifting process is safe and reliable. It is usually used in conjunction with overhead cranes, so it is also known as an overhead crane c hook.

Coil lifting c hook supports 0.5-30 tons load range, mainly used for safe lifting of metal materials such as steel coils, aluminum coils, copper coils, etc., as well as fiber optic cables, paper rolls and other non-metallic materials in paper industry, and it can also complete the container loading operation of steel pipes and slabs. With simple structure, convenient operation, high loading and unloading efficiency, and low cost, it is widely used in iron and steel mills, non-ferrous metals, automobile plate processing, paper mills, ports, wharves, and other industries.

Coil Lifting C Hook Types

According to different application scenarios, coil lifting c hook can be categorized into various types, and all of the following types comply with international safety standards, and the load capacity ranges from 0.5 tons to 50 tons to meet all kinds of industrial needs.

Standard Lifting C Hook

Single Coil C Hook

Narrow Coil Lifting C Hook

C Hooks for Container Loading and Unloading

Heavy Duty Lifting C Hook

Industrial-grade lifting solution for extra-large steel coils (up to 50 tons). Features reinforced alloy steel construction with wear-resistant contact pads, ideal for foundries and heavy steel mills.

Single Coil Lifting C Hook

Precision-engineered for individual coil handling (5-30 ton range). Balanced design enables smooth 90° rotation, perfect for automotive sheet metal processing.

Narrow Coil Lifting C Hook

Specialized slim-profile design for tight-clearance applications. Protective nylon lining prevents surface damage to thin-gauge coils in the packaging/paper industries.

Container Loading Lifting C Hook

Compact yet robust (10-20 ton capacity) with quick-lock mechanism. Optimized for port operations with anti-sway features for containerized coil transfers.

Specifications

Features

• Forged steel construction with wear-resistant contact pads.
• Radius-matched contouring for full coil circumference support.
• Integrated load stabilization system to minimize swing.
• Ergonomic latch mechanism for secure coil engagement.
• Modular design allows for quick component replacement.
• Accommodates different coil sizes and weights.
• Safety grip with anti-slip and overload protection.
• Faster loading/unloading than slings or magnets.
• High-strength steel resists wear and tear during handling.

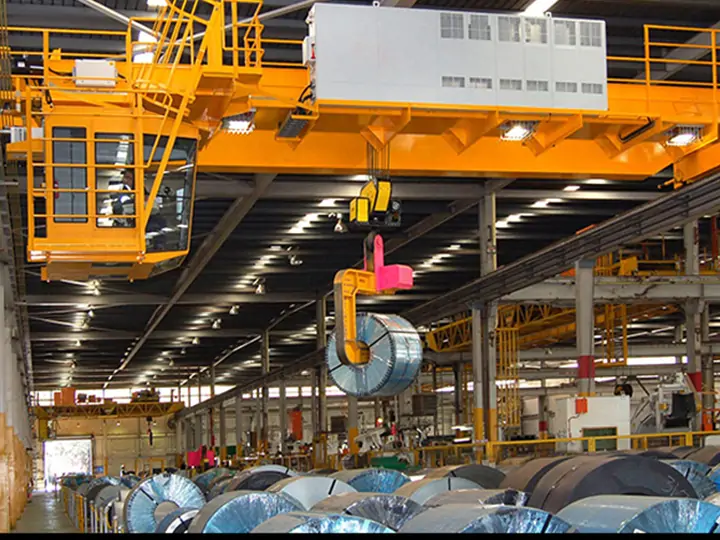

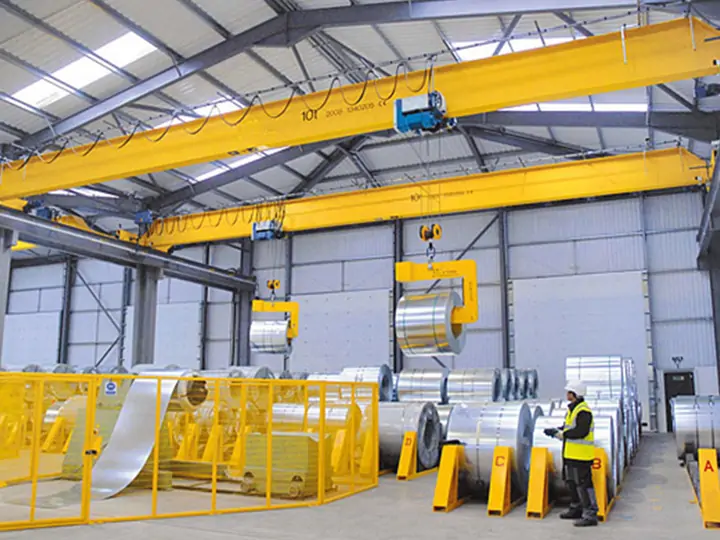

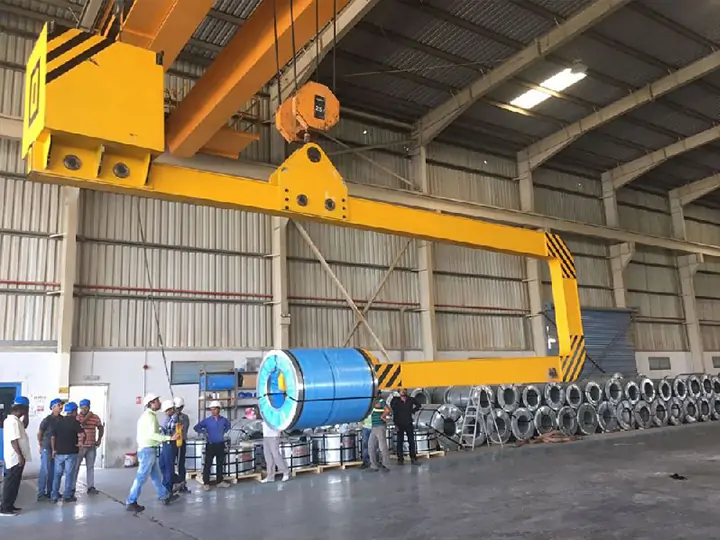

Lifting C Hook Application

• Iron and steel and metal processing industry: for steel mills, steel coils, handling, and non-ferrous metal coil transfer;
• Automobile manufacturing industry: for coil stamping line feeding, non-metallic coils, and parts lifting;
• paper and packaging industry: for large paper coil handling and packaging material logistics;
• Ports and logistics: for efficient loading and unloading of containerized coils and storage and stacking.
• Energy and heavy machinery industry: for cable tubing, fiber optic or rope wiring, large metal pipe handling, and wind power equipment assembly.
